2173157-3
Manufacturer:
TE Connectivity
Mfr.Part #:
2173157-3
Datasheet:
Description:

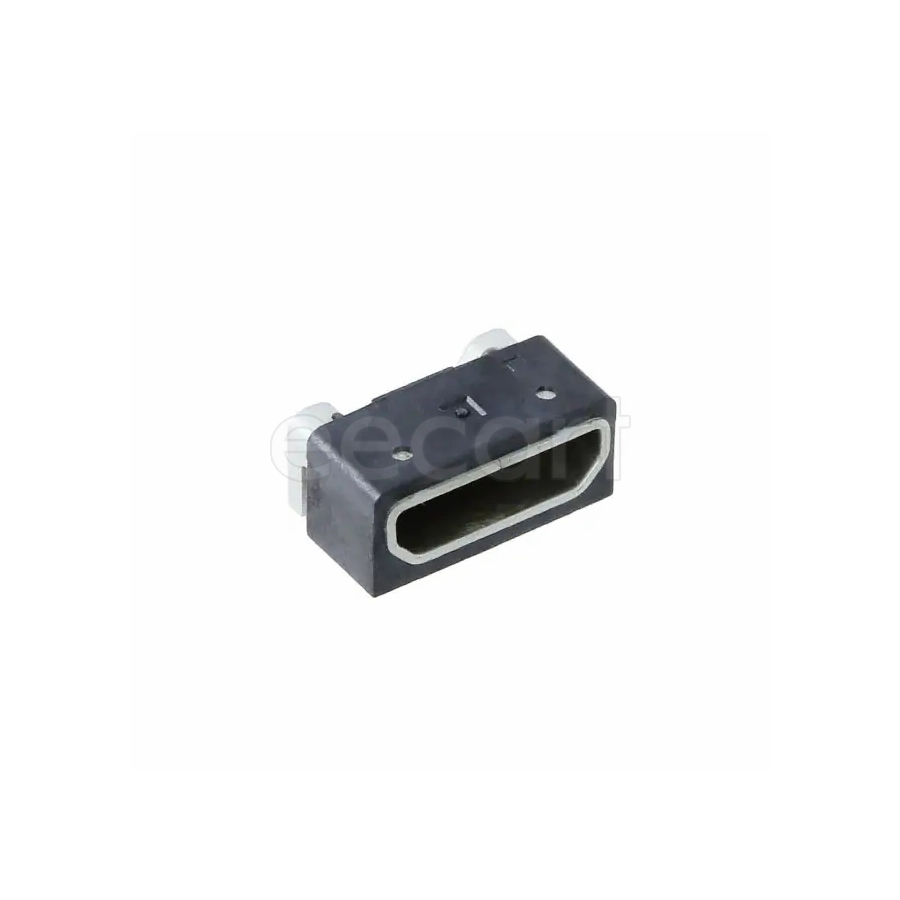

USB Connectors SMD/SMT USB - Micro B Receptacle USB 2.0
| Parameter | Value |
|---|---|
| Length | 8.2 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Packaging | Reel |
| Voltage Rating | 30 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Gold |
| Pitch | 635 µm |
| Current Rating | 1.8 A |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Gender | Receptacle |
| ELV | Compliant |
| Connector Type | Receptacle |
| Number of Positions | 5 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Contact Current Rating | 1.8 A |
| Housing Color | Black |
| Plating | Nickel, Tin |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Max RMS Current | 1.8 A |
| USB Standard | USB 2.0 |
| Number of Contacts | 5 |
| Mounting Angle | Right Angle |
| Type | USB - Micro B |
Stock: 536
Distributors
pcbx
pcbxUnit Price$0.94470
Ext.Price$0.94470
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.94470 | $0.94470 |
| 10 | $0.94470 | $9.44700 |
| 25 | $0.94470 | $23.61750 |
| 50 | $0.94470 | $47.23500 |
| 100 | $0.94470 | $94.47000 |
| 300 | $0.94470 | $283.41000 |
| 500 | $0.94470 | $472.35000 |
| 1000 | $0.94470 | $944.70000 |
